Products

PoE Adapter

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable™, and TOUGHCable Connectors.

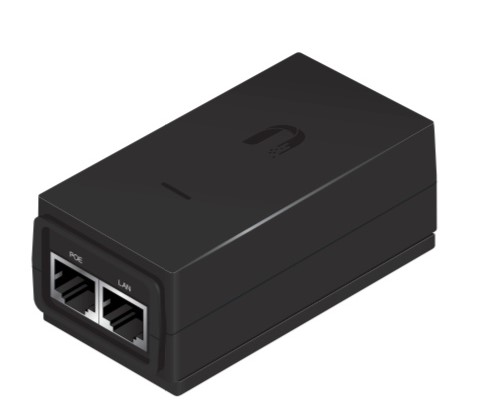

POE-25-5W Specifications

  • Dimensions
    64 × 44× 30 mm(2.53 × 1.73 × 1.18")
  • Weight
    65 g (2.3 oz)
  • Output Voltage
    25VDC @ 0.2A
  • Input Current
    0.3A @ 120VAC,0.2A @ 240VAC
  • Switching Frequency
    60 kHz
  • Peak Pulse Current
    36A (10/1000μS) Data
  • Efficiency
    72+%
  • Operating Temperature
    0 to 40° C (32 to 104° F)
  • Storage Temperature
    -30 to 70°C (-22 to 158° F)
  • Operating Humidity
    35 to 95% Non-Condensing

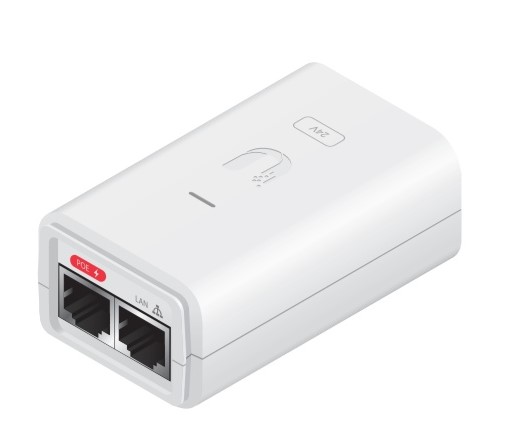

POE-24-7W-G-WH Specifications

  • Dimensions
    72 x 45 x 33 mm(2.84 x 1.75 x 1.33")
  • Weight
    72.1g (2.54 oz)
  • Output Voltage
    24VDC @ 0.3A
  • Input Current
    0.3A @ 120VAC,0.2A @ 240VAC
  • Switching Frequency
    65 kHz
  • Peak Pulse Current
    36A (10/1000μS) Data
  • Efficiency
    80+%
  • Operating Temperature
    0 to 40° C (32 to 104° F)
  • Storage Temperature
    -30 to 70°C (-22 to 158° F)
  • Operating Humidity
    35 to 95% Non-Condensing

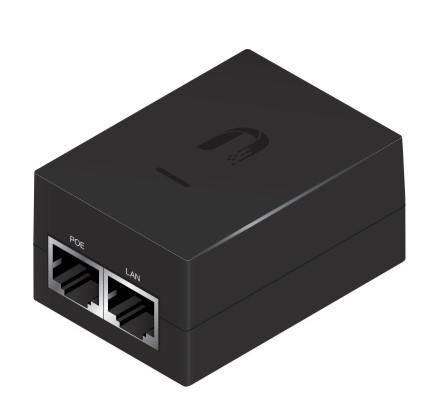

POE-15-12W Specifications

  • Dimensions
    85 x 44 x 29 mm(3.35 x 1.73 x 1.14")
  • Weight
    91.7 g (3.24 oz)
  • Output Voltage
    15VDC @ 0.8A
  • Input Current
    0.3A @ 120VAC,0.2A @ 240VAC
  • Switching Frequency
    50 kHz
  • Peak Pulse Current
    36A (10/1000μS) Data
  • Efficiency
    75+%
  • Operating Temperature
    0 to 40° C (32 to 104° F)
  • Storage Temperature
    -30 to 70°C (-22 to 158° F)
  • Operating Humidity
    35 to 95% Non-Condensing
