Ubiquiti AIRFiber X

Carrier Backhaul Radio

Ubiquiti Networks continues to disrupt the wireless broadband market with revolutionary technology at breakthrough pricing by introducing the airFiber® X, a modular airFiber radio system that will serve a wide range of frequencies and is designed to be compatible with a variety of Ubiquiti® antennas. Building upon the proven design of the airFiber system, the airFiber X allows you to customize airFiber backhaul links or upgrade existing Rocket Point‑to‑Point (PtP) links. The airFiber X is available in three frequency bands:

  • 2.4 GHz, model AF-2X
  • 3 GHz, model AF-3X
  • 5 GHz, model AF-5X

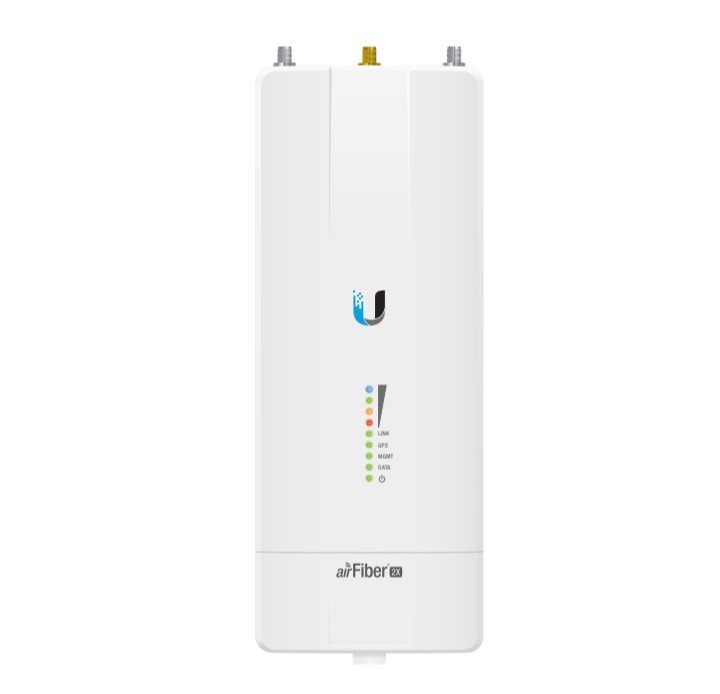

AF-2X Specifications

  • Dimensions Radio Box
    224 x 82 x 48 mm (8.82 x 3.23 x 1.89"),261 x 107 x 107 mm (10.28 x 4.21 x 4.21")
  • Weight Radio Box
    0.35 kg (0.77 lb),1.1 kg (2.43 lb)
  • RF Connectors
    (2) RP-SMA Weatherproof (CH0, CH1),(1) SMA Weatherproof (GPS)
  • GPA Antenna
    External, Magnetic Base
  • Power Supply
    24V, 1A PoE Gigabit Adapter (Included)
  • Power Method
    Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
  • Max. Power Consumption
    17W @ Max. Power/Duty Cycle
  • Supported Voltage Range
    +18 to +54VDC1
  • Automatic Transmit Power Control (ATPC)
    Yes
  • Mounting
    airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included)
  • Operating Temperature
    -40 to 55° C (-40 to 131° F)

AF-2X Networking Interface

  • Data Port
    (1) 10/100/1000 Ethernet Port
  • Management Port
    (1) 10/100 Ethernet Port

AF-2X System

  • Processor
    INVICTUS IC
  • Maximum Throughput
    687+ Mbps2
  • Maximum Range
    200+ km2
  • Packets per Second
    1+ Million
  • Encryption
    128-bit AES
  • OS
    airOS F
  • Wireless Modes
    Master/Slave
  • Latency Half Duplex Mode
    < 2 ms at Full Throughput
  • MTU (Maximum Transmission Unit)
    Up to 9600
  • Channel Bandwidth
    3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable2 Programmable Uplink and Downlink Duty Cycles Independently Programmable TX and RX Frequencies

AF-2X Suggested Max. TX Power

  • 8x
    23 - 24 dBm
  • 6x
    25 - 26 dBm
  • 4x
    27 - 28 dBm
  • 2x
    30 dBm
  • 1x
    30 dBm

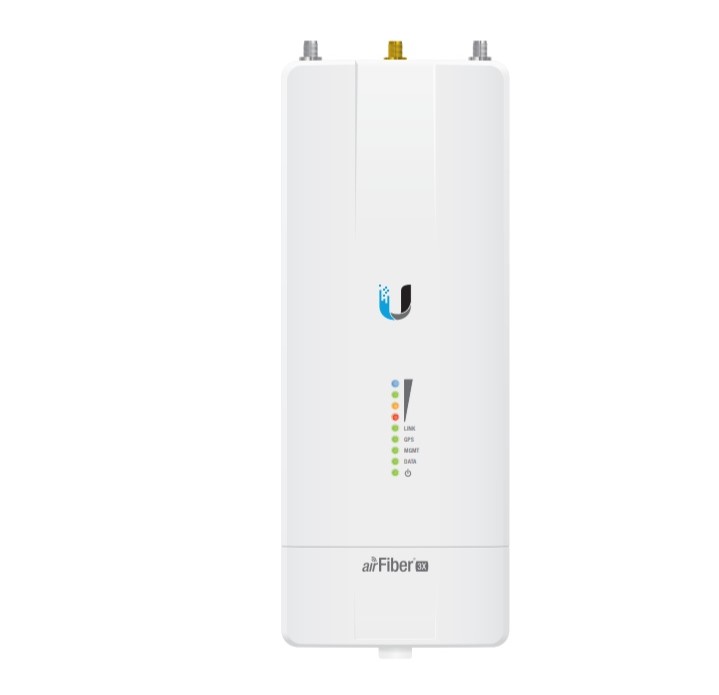

AF-3X Specifications

  • Dimensions Radio Box
    224 x 82 x 48 mm (8.82 x 3.23 x 1.89"),261 x 107 x 107 mm (10.28 x 4.21 x 4.21")
  • Weight Radio Box
    0.35 kg (0.77 lb),1.1 kg (2.43 lb)
  • RF Connectors
    (2) RP-SMA Weatherproof (CH0, CH1),(1) SMA Weatherproof (GPS)
  • GPA Antenna
    External, Magnetic Base
  • Power Supply
    24V, 1A PoE Gigabit Adapter (Included)
  • Power Method
    Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
  • Max. Power Consumption
    17W @ Max. Power/Duty Cycle
  • Supported Voltage Range
    +18 to +54VDC1
  • Automatic Transmit Power Control (ATPC)
    Yes
  • Mounting
    airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included)
  • Operating Temperature
    -40 to 55° C (-40 to 131° F)

AF-3X Networking Interface

  • Data Port
    (1) 10/100/1000 Ethernet Port
  • Management Port
    (1) 10/100 Ethernet Port

AF-3X System

  • Processor
    INVICTUS IC
  • Maximum Throughput
    687+ Mbps2
  • Maximum Range
    200+ km2
  • Packets per Second
    1+ Million
  • Encryption
    128-bit AES
  • OS
    airOS F
  • Wireless Modes
    Master/Slave
  • Latency Half Duplex Mode
    < 2 ms at Full Throughput
  • MTU (Maximum Transmission Unit)
    Up to 9600
  • Channel Bandwidth
    3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable2 Programmable Uplink and Downlink Duty Cycles Independently Programmable TX and RX Frequencies

AF-3X Suggested Max. TX Power

  • 8x
    21 - 22 dBm
  • 6x
    23 - 24 dBm
  • 4x
    25 - 26 dBm
  • 2x
    29 dBm
  • 1x
    29 dBm

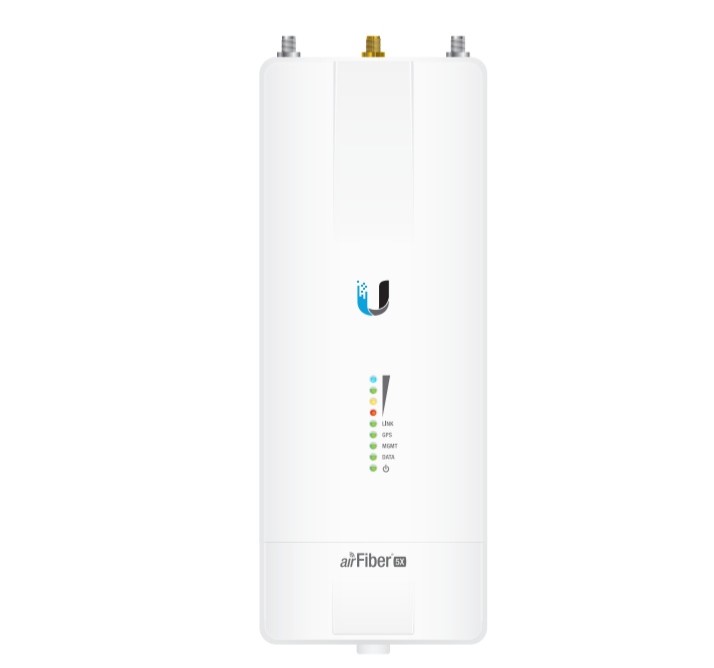

AF-5X Specifications

  • Dimensions Radio Box
    224 x 82 x 48 mm (8.82 x 3.23 x 1.89"),261 x 107 x 107 mm (10.28 x 4.21 x 4.21")
  • Weight Radio Box
    0.35 kg (0.77 lb),1.1 kg (2.43 lb)
  • RF Connectors
    (2) RP-SMA Weatherproof (CH0, CH1),(1) SMA Weatherproof (GPS)
  • GPA Antenna
    External, Magnetic Base
  • Power Supply
    24V, 1A PoE Gigabit Adapter (Included)
  • Power Method
    Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
  • Max. Power Consumption
    15W @ Max. Power/Duty Cycle
  • Supported Voltage Range
    +18 to +54VDC1
  • Automatic Transmit Power Control (ATPC)
    Yes
  • Mounting
    airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included)
  • Operating Temperature
    -40 to 55° C (-40 to 131° F)

AF-5X Networking Interface

  • Data Port
    (1) 10/100/1000 Ethernet Port
  • Management Port
    (1) 10/100 Ethernet Port

AF-5X System

  • Processor
    INVICTUS IC
  • Maximum Throughput
    500+ Mbps2
  • Maximum Range
    300+ km2
  • Packets per Second
    1+ Million
  • Encryption
    128-bit AES
  • OS
    airOS F
  • Wireless Modes
    Master/Slave
  • Latency Half Duplex Mode
    < 2 ms at Full Throughput
  • MTU (Maximum Transmission Unit)
    Up to 9600
  • Channel Bandwidth
    10/20/30/40/50 MHz Selectable Programmable Uplink and Downlink Duty Cycles

AF-5X Suggested Max. TX Power

  • 8x
    19 - 20 dBm
  • 6x
    21 - 22 dBm
  • 4x
    23 - 24 dBm
  • 2x
    26 dBm
  • 1x
    26 dBm
