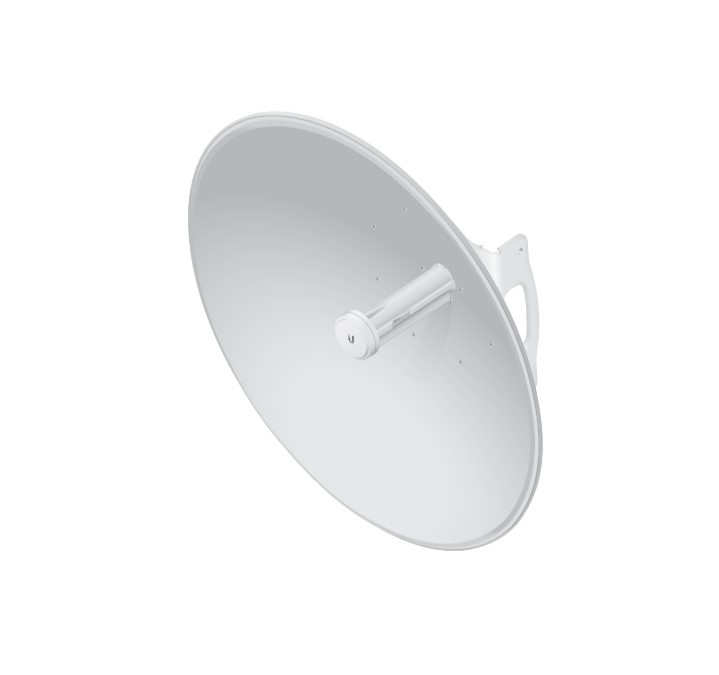

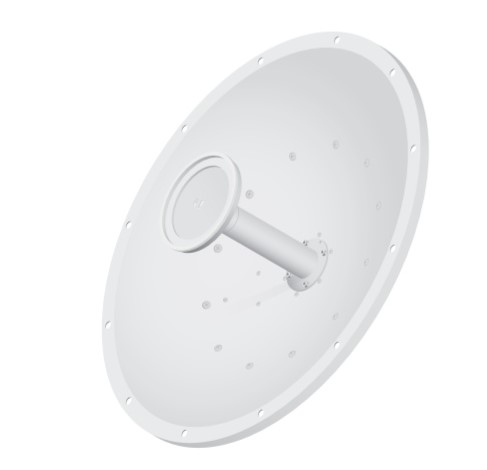

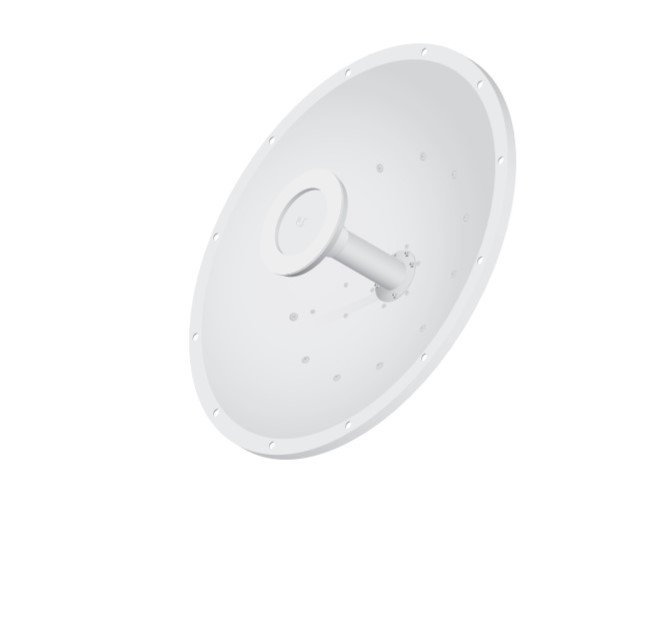

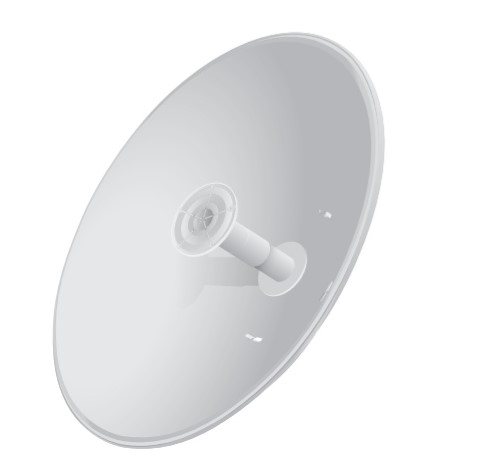

ROCKETDISHTMLW

airMAX® 2x2 PtP Bridge Dish Antenna

Pair a RocketDish™ LW antenna with a Rocket® basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RocketDish is available in the following frequency models:

  • 2.4 GHz
  • 3 GHz
  • 5 GHz

Model RD-2G24 Specifications

  • Dimensions
    650 x 650 x 295 mm(25.6 x 25.6 x 11.61")
  • Weight
    9.8 kg (21.61 lb)
  • Frequency Range
    2.3 - 2.7 GHz
  • Gain
    24 dBi
  • Max. VSWR
    1.6:1
  • Wind Survivability
    200 km/h (125 mph)
  • Wind Loading
    787 N @ 200 km/h (177 lbf @125 mph)
  • Polarization
    Dual-Linear
  • Cross-pol Isolation
    35 dB Min.
  • ETSI Specification
    EN 302 326 DN2
  • Mounting
    Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included

Model RD-3G26 Specifications

  • Dimensions
    650 x 650 x 300 mm(25.6 x 25.6 x 11.81")
  • Weight
    9.8 kg (21.61 lb)
  • Frequency Range
    3.3 - 3.8 GHz
  • Gain
    26 dBi
  • Max. VSWR
    1.4:1
  • Wind Survivability
    200 km/h (125 mph)
  • Wind Loading
    787 N @ 200 km/h (177 lbf @125 mph)
  • Polarization
    Dual-Linear
  • Cross-pol Isolation
    35 dB Min.
  • ETSI Specification
    EN 302 326 DN2
  • Mounting
    Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included

Model RD-5G30 Specifications

  • Dimensions
    650 x 650 x 304 mm(25.6 x 25.6 x 11.97")
  • Weight
    9.8 kg (21.61 lb)
  • Frequency Range
    4.9 - 5.8 GHz
  • Gain
    4.9 GHz: 26 dBi,5 - 5.9 GHz: 30 dBi
  • Max. VSWR
    1.4:1
  • Wind Survivability
    200 km/h (125 mph)
  • Wind Loading
    787 N @ 200 km/h (177 lbf @125 mph)
  • Polarization
    Dual-Linear
  • Cross-pol Isolation
    35 dB Min.
  • ETSI Specification
    EN 302 326 DN2
  • Mounting
    Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included

Model RD-5G30-LW Specifications

  • Dimensions
    650 x 650 x 386 mm(25.6 x 25.6 x 15.2")
  • Weight
    7.4 kg (16.31 lb)
  • Frequency Range
    5.1 - 5.9 GHz
  • Gain
    30 dBi
  • Max. VSWR
    1.6:1
  • Wind Survivability
    200 km/h (125 mph)
  • Wind Loading
    790 N @ 200 km/h(178 lbf @ 125 mph)
  • Polarization
    Dual-Linear
  • Cross-pol Isolation
    35 dB Min.
  • ETSI Specification
    EN 302 326 DN2
  • Mounting
    Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included

Model RD-5G34 Specifications

  • Dimensions
    1050 x 1050 x 421 mm(41.34 x 41.34 x 16.57")
  • Weight
    13.5 kg (29.76 lb)
  • Frequency Range
    4.9 - 5.8 GHz
  • Gain
    4.9 GHz: 30 dBi,5 - 5.8 GHz: 34 dBi
  • Max. VSWR
    1.4:1
  • Wind Survivability
    200 km/h (125 mph)
  • Wind Loading
    1,779 N @ 200 km/h(400 lbf @ 125 mph)
  • Polarization
    Dual-Linear
  • Cross-pol Isolation
    35 dB Min.
  • ETSI Specification
    EN 302 326 DN2
  • Mounting
    Universal Pole Mount, RocketM Bracket, and Weatherproof RF Connectors Included
